Workflow Engine

Configurable approval workflow with steps, assignments, and history.

ahgWorkflowPlugin
All Schemas
3
ahg_workflow
0
ahg_workflow_history
0
ahg_workflow_notification
8
ahg_workflow_queue
3
ahg_workflow_sla_policy
4
ahg_workflow_step
0
ahg_workflow_task
0
workflow_history
0
workflow_instance

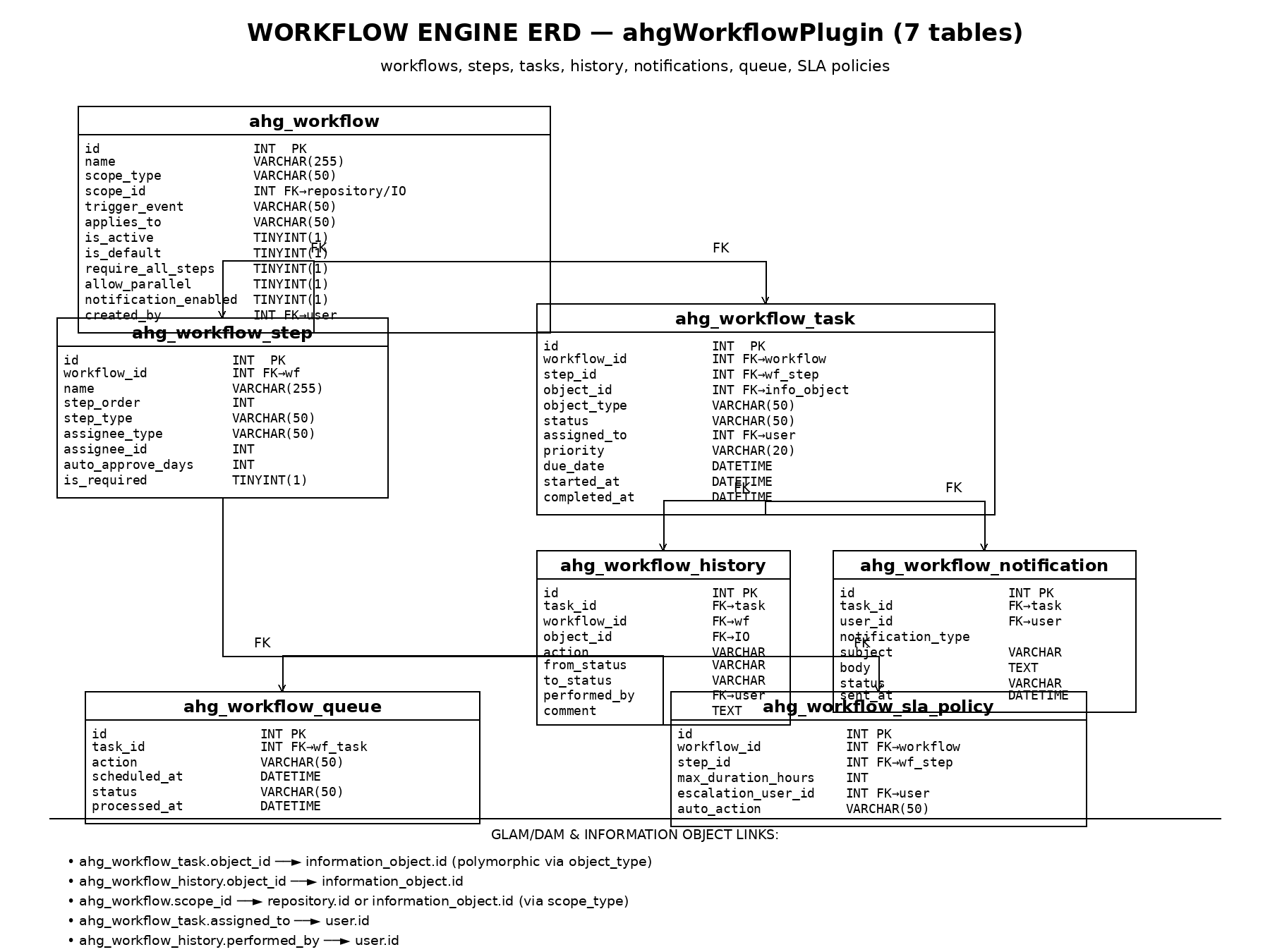

Entity Relationship Diagram
Open Full Size
Workflow Engine ERD
Foreign Key Relationships
Constraint Table Column References Referenced Column
fk_step_workflow ahg_workflow_step workflow_id ahg_workflow id
fk_task_workflow ahg_workflow_task workflow_id ahg_workflow id
fk_task_step ahg_workflow_task workflow_step_id ahg_workflow_step id
workflow_history_workflow_instance_id_foreign workflow_history workflow_instance_id workflow_instance id
ahg_workflow
16 columns 3 rows
Column Type Nullable Default Extra Comment
PK id int NOT NULL - auto_increment
name varchar(255) NOT NULL -
description text NULL -
FK scope_type varchar(50) NOT NULL global
scope_id int NULL - repository_id or information_object_id depending on scope_type
FK trigger_event varchar(50) NOT NULL submit
applies_to varchar(50) NOT NULL information_object
FK is_active tinyint(1) NOT NULL 1
FK is_default tinyint(1) NOT NULL 0 Default workflow for scope
require_all_steps tinyint(1) NOT NULL 1 Must complete all steps in order
allow_parallel tinyint(1) NOT NULL 0 Allow parallel step execution
auto_archive_days int NULL - Auto-archive completed tasks after N days
notification_enabled tinyint(1) NOT NULL 1
created_by int NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
ahg_workflow_history
16 columns 0 rows
Column Type Nullable Default Extra Comment
PK id int NOT NULL - auto_increment
FK task_id int NULL - Link to task (null if task deleted)
FK workflow_id int NOT NULL -
workflow_step_id int NULL -
FK object_id int NOT NULL -
object_type varchar(50) NOT NULL information_object
FK action varchar(50) NOT NULL -
from_status varchar(50) NULL -
to_status varchar(50) NULL -
FK performed_by int NOT NULL -
FK performed_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
comment text NULL -
metadata text NULL - JSON additional data
ip_address varchar(45) NULL -
user_agent varchar(500) NULL -
FK correlation_id varchar(36) NULL -
ahg_workflow_notification
11 columns 0 rows
Column Type Nullable Default Extra Comment
PK id int NOT NULL - auto_increment
FK task_id int NULL -
FK user_id int NOT NULL -
FK notification_type varchar(50) NOT NULL -
subject varchar(500) NOT NULL -
body text NOT NULL -
FK status varchar(50) NOT NULL pending
sent_at datetime NULL -
error_message text NULL -
retry_count int NOT NULL 0
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
ahg_workflow_queue
10 columns 8 rows
Column Type Nullable Default Extra Comment
PK id int unsigned NOT NULL - auto_increment
name varchar(100) NOT NULL -
UQ slug varchar(100) NOT NULL -
description text NULL -
sort_order int NULL 0
is_active tinyint(1) NULL 1
sla_days int NULL -
icon varchar(50) NULL fa-inbox
color varchar(7) NULL #6c757d
created_at timestamp NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
ahg_workflow_sla_policy
11 columns 3 rows
Column Type Nullable Default Extra Comment
PK id int unsigned NOT NULL - auto_increment
name varchar(100) NOT NULL -
FK queue_id int unsigned NULL -
FK workflow_id int NULL -
warning_days int NULL 3
due_days int NULL 5
escalation_days int NULL 7
escalation_user_id int NULL -
escalation_action varchar(50) NULL notify_lead
FK is_active tinyint(1) NULL 1
created_at timestamp NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
ahg_workflow_step
22 columns 4 rows
Column Type Nullable Default Extra Comment
PK id int NOT NULL - auto_increment
FK workflow_id int NOT NULL -
name varchar(255) NOT NULL -
description text NULL -
step_order int NOT NULL 1
step_type varchar(50) NOT NULL review
action_required varchar(50) NOT NULL approve_reject
FK required_role_id int NULL - AtoM role_id or null for any authenticated user
FK required_clearance_level int NULL - Security clearance level from ahgSecurityClearancePlugin
allowed_group_ids text NULL - JSON array of allowed group IDs
allowed_user_ids text NULL - JSON array of specific user IDs
pool_enabled tinyint(1) NOT NULL 1 Allow task claiming from pool
auto_assign_user_id int NULL - Auto-assign to specific user
escalation_days int NULL - Days before escalation
escalation_user_id int NULL - User to escalate to
notification_template varchar(100) NULL default Email template name
instructions text NULL - Instructions shown to reviewer
checklist text NULL - JSON array of checklist items
is_optional tinyint(1) NOT NULL 0
is_active tinyint(1) NOT NULL 1
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
ahg_workflow_task
23 columns 0 rows
Column Type Nullable Default Extra Comment
PK id int NOT NULL - auto_increment
FK workflow_id int NOT NULL -
FK workflow_step_id int NOT NULL -
FK object_id int NOT NULL - information_object.id or other entity
object_type varchar(50) NOT NULL information_object
FK status varchar(50) NOT NULL pending
FK priority varchar(50) NOT NULL normal
FK submitted_by int NOT NULL - User who submitted item to workflow
FK assigned_to int NULL - User who claimed/was assigned the task
claimed_at datetime NULL -
FK due_date date NULL -
decision varchar(50) NULL pending
decision_comment text NULL -
decision_at datetime NULL -
decision_by int NULL -
checklist_completed text NULL - JSON object of completed checklist items
metadata text NULL - Additional JSON metadata
previous_task_id int NULL - Link to previous step task
retry_count int NOT NULL 0
escalated_at datetime NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
FK queue_id int unsigned NULL -
workflow_history
8 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
FK workflow_instance_id bigint unsigned NOT NULL -
from_state varchar(50) NULL -
to_state varchar(50) NOT NULL -
transition varchar(50) NOT NULL -
user_id int unsigned NOT NULL -
comment text NULL -
FK created_at timestamp NOT NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
workflow_instance
11 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
FK workflow_id varchar(50) NOT NULL -
FK entity_type varchar(50) NOT NULL -
entity_id int unsigned NOT NULL -
FK current_state varchar(50) NOT NULL -
FK is_complete tinyint(1) NOT NULL 0
metadata json NULL -
created_by int unsigned NOT NULL -
created_at timestamp NOT NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at timestamp NOT NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
completed_at timestamp NULL -
Notes

Log in to add notes.

Legend
PK Primary Key FK Foreign Key / Index UQ Unique Constraint
Table structures are read live from the database. Row counts reflect current data.
