Custom Fields (EAV)

Admin-configurable custom metadata fields using Entity-Attribute-Value pattern.

ahgCustomFieldsPlugin
All Schemas
0
custom_field_definition
0
custom_field_value

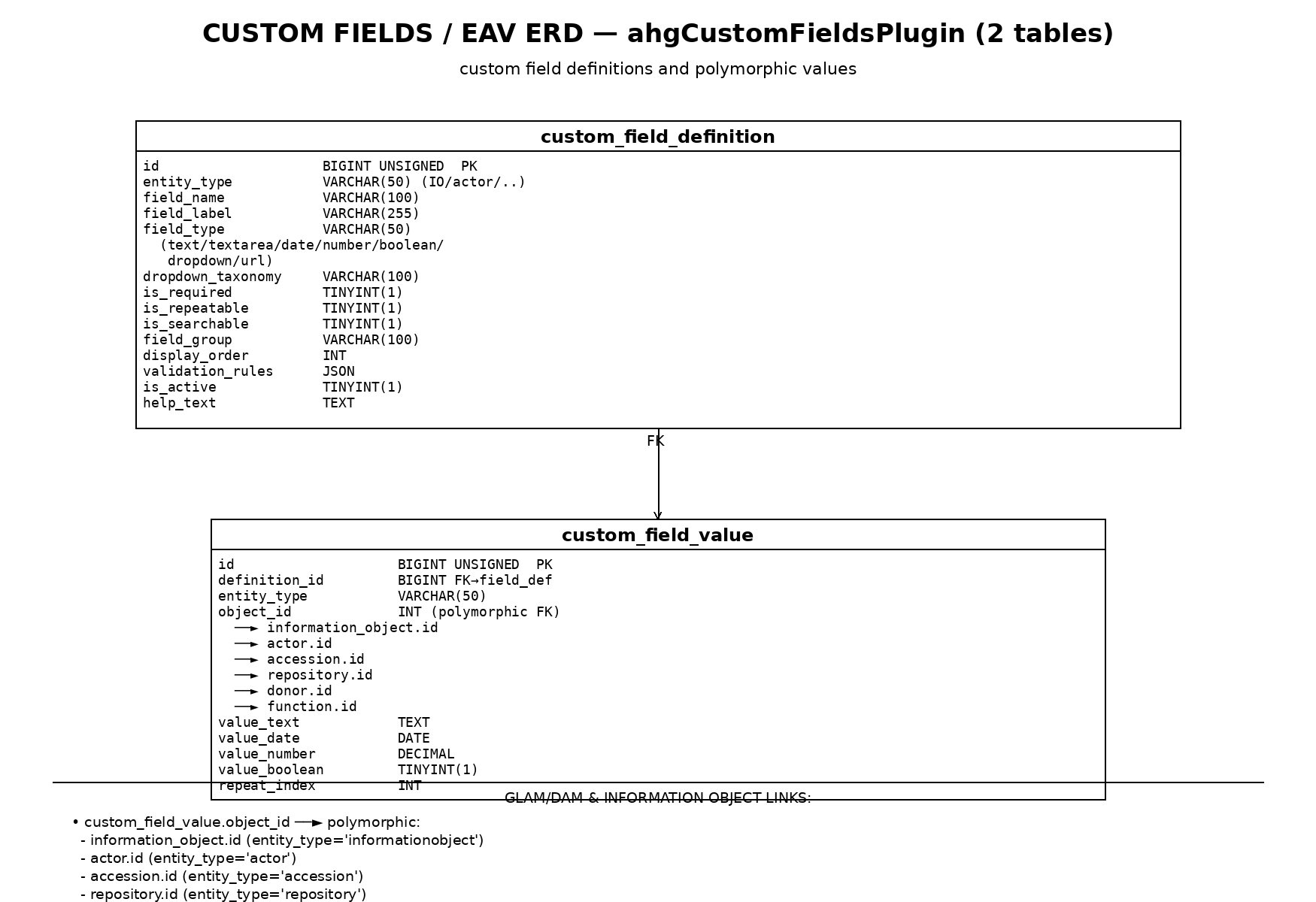

Entity Relationship Diagram
Open Full Size
Custom Fields (EAV) ERD
Foreign Key Relationships
Constraint Table Column References Referenced Column
custom_field_value_ibfk_1 custom_field_value field_definition_id custom_field_definition id
custom_field_definition
19 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
FK field_key varchar(100) NOT NULL -
field_label varchar(255) NOT NULL -
field_type varchar(30) NOT NULL text text, textarea, date, number, boolean, dropdown, url
FK entity_type varchar(50) NOT NULL - informationobject, actor, accession, repository, donor, function
FK field_group varchar(100) NULL - UI section grouping label
dropdown_taxonomy varchar(100) NULL - ahg_dropdown taxonomy key when field_type=dropdown
is_required tinyint(1) NULL 0
is_searchable tinyint(1) NULL 0
is_visible_public tinyint(1) NULL 1
is_visible_edit tinyint(1) NULL 1
is_repeatable tinyint(1) NULL 0
default_value varchar(500) NULL -
help_text varchar(500) NULL -
validation_rule varchar(255) NULL - e.g. max:255, regex:/^[A-Z]/
sort_order int NULL 0
FK is_active tinyint(1) NULL 1
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
custom_field_value
11 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
FK field_definition_id bigint unsigned NOT NULL -
FK object_id int NOT NULL - FK to the entity (information_object.id, actor.id, etc.)
value_text text NULL -
value_number decimal(15,4) NULL -
value_date date NULL -
value_boolean tinyint(1) NULL -
FK value_dropdown varchar(100) NULL - ahg_dropdown code reference
sequence int NULL 0 Ordering for repeatable fields
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
Notes

Log in to add notes.

Legend
PK Primary Key FK Foreign Key / Index UQ Unique Constraint
Table structures are read live from the database. Row counts reflect current data.
