CDPA (Zimbabwe)

Cyber & Data Protection Act [Chapter 12:07] — POTRAZ compliance.

ahgCDPAPlugin
All Schemas
0
cdpa_audit_log
0
cdpa_breach
8
cdpa_config
0
cdpa_consent
0
cdpa_controller_license
0
cdpa_data_subject_request
0
cdpa_dpia
0
cdpa_dpo
0
cdpa_processing_activity

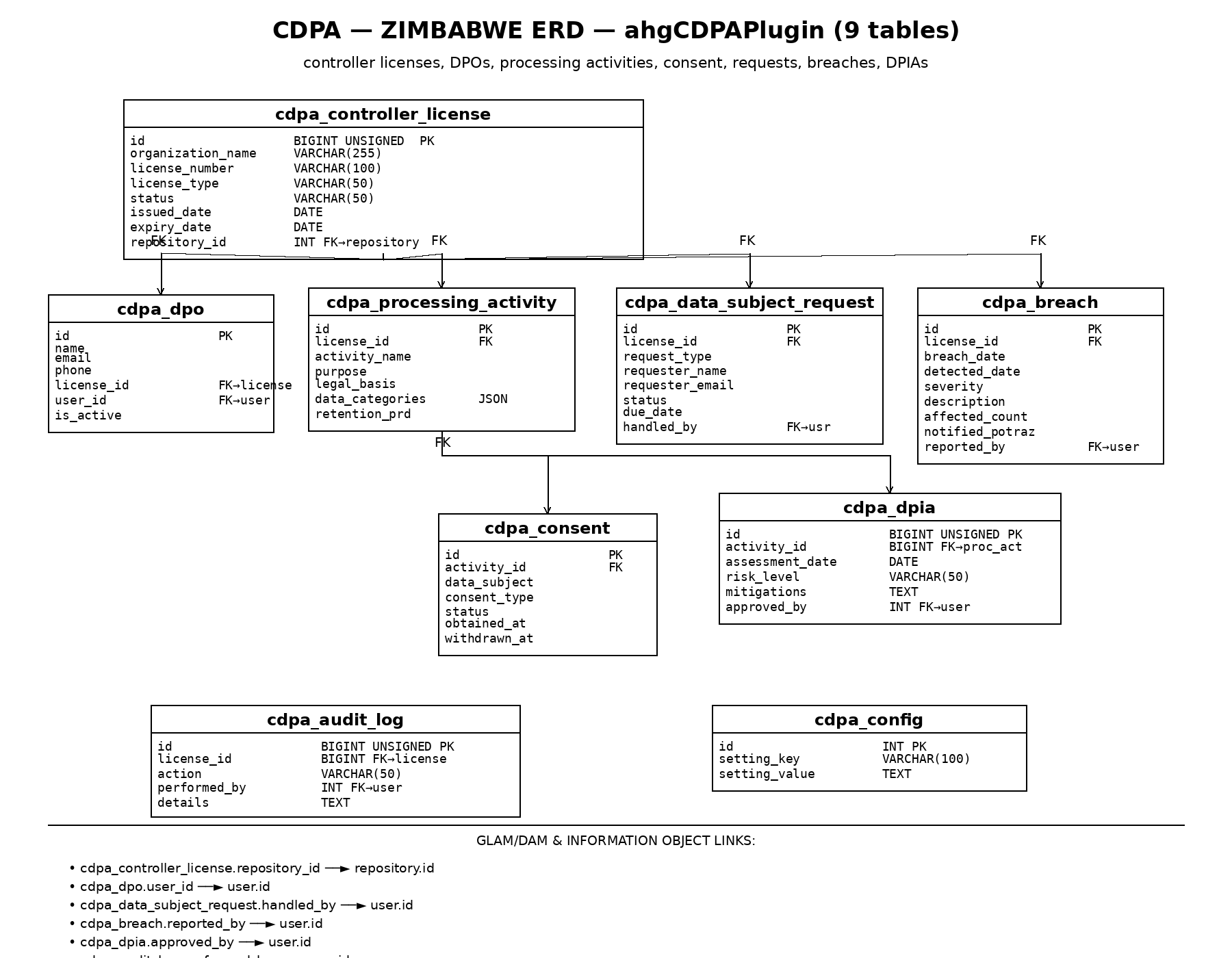

Entity Relationship Diagram
Open Full Size
CDPA (Zimbabwe) ERD
Foreign Key Relationships
Constraint Table Column References Referenced Column
cdpa_consent_ibfk_1 cdpa_consent processing_activity_id cdpa_processing_activity id
cdpa_dpia_ibfk_1 cdpa_dpia processing_activity_id cdpa_processing_activity id
cdpa_audit_log
8 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
action_type varchar(100) NOT NULL -
FK entity_type varchar(100) NOT NULL -
entity_id bigint unsigned NULL -
FK user_id int NULL -
details json NULL -
ip_address varchar(45) NULL -
FK created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
cdpa_breach
24 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
UQ reference_number varchar(50) NOT NULL -
FK incident_date datetime NOT NULL - When the breach occurred
discovery_date datetime NOT NULL - When breach was discovered
description text NOT NULL -
breach_type varchar(92) NOT NULL - unauthorized_access, data_loss, data_theft, accidental_disclosure, system_breach, other
data_affected text NULL - Types of data affected
records_affected int NULL - Number of records affected
data_subjects_affected int NULL - Number of individuals affected
FK severity varchar(34) NULL medium low, medium, high, critical
potraz_notified tinyint(1) NULL 0
potraz_notified_date datetime NULL - Must be within 72 hours
potraz_reference varchar(100) NULL -
subjects_notified tinyint(1) NULL 0
subjects_notified_date datetime NULL -
notification_method text NULL - How subjects were notified
root_cause text NULL -
remediation text NULL - Actions taken to address breach
prevention_measures text NULL - Measures to prevent recurrence
FK status varchar(50) NULL investigating investigating, contained, resolved, ongoing
reported_by int NULL -
closed_date datetime NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_config
7 columns 8 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
UQ setting_key varchar(100) NOT NULL -
setting_value text NULL -
setting_type varchar(37) NULL string string, integer, boolean, json
description text NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_consent
17 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
data_subject_name varchar(255) NOT NULL -
data_subject_email varchar(255) NULL -
FK data_subject_id varchar(100) NULL - ID or unique identifier
purpose varchar(255) NOT NULL - Purpose consent was given for
FK processing_activity_id bigint unsigned NULL - Link to processing activity
FK consent_date datetime NOT NULL -
consent_method varchar(42) NULL electronic written, electronic, verbal, opt_in
withdrawal_date datetime NULL -
withdrawal_reason text NULL -
is_biometric tinyint(1) NULL 0 Consent for biometric data
is_children tinyint(1) NULL 0 Consent for children data (guardian consent)
guardian_name varchar(255) NULL - Guardian name if children consent
evidence_path varchar(500) NULL - Path to consent evidence document
FK is_active tinyint(1) NULL 1
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_controller_license
15 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
FK license_number varchar(100) NOT NULL - POTRAZ license number
tier varchar(33) NOT NULL - tier1, tier2, tier3, tier4
organization_name varchar(255) NOT NULL -
registration_date date NOT NULL -
issue_date date NOT NULL -
FK expiry_date date NOT NULL -
potraz_ref varchar(100) NULL - POTRAZ reference number
certificate_path varchar(500) NULL - Path to license certificate document
data_subjects_count int NULL - Estimated number of data subjects
renewal_reminder_sent tinyint(1) NULL 0
FK status varchar(50) NULL active active, expired, suspended, pending_renewal
notes text NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_data_subject_request
19 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
FK request_type varchar(69) NOT NULL - access, rectification, erasure, object, portability, restriction
UQ reference_number varchar(50) NOT NULL - Internal reference number
data_subject_name varchar(255) NOT NULL -
data_subject_email varchar(255) NULL -
data_subject_phone varchar(50) NULL -
data_subject_id_number varchar(50) NULL - National ID or passport number
FK request_date date NOT NULL -
FK due_date date NOT NULL - 30 days from request date
description text NULL - Details of the request
FK status varchar(57) NULL pending pending, in_progress, completed, rejected, extended
completed_date date NULL -
handled_by int NULL - User ID who handled the request
response_notes text NULL -
rejection_reason text NULL -
extension_reason text NULL - Reason if deadline was extended
verification_method varchar(100) NULL - How identity was verified
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_dpia
20 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
name varchar(255) NOT NULL -
FK processing_activity_id bigint unsigned NULL - Link to processing activity
description text NULL -
necessity_assessment text NULL - Why is this processing necessary?
FK risk_level varchar(34) NULL medium low, medium, high, critical
assessment_date date NOT NULL -
assessor_name varchar(255) NULL -
FK next_review_date date NULL -
FK status varchar(46) NULL draft draft, in_progress, completed, approved
findings_json json NULL - Detailed risk findings
risks_identified text NULL -
mitigation_measures text NULL -
residual_risk_level varchar(34) NULL - low, medium, high, critical
dpo_approval tinyint(1) NULL 0
dpo_approval_date date NULL -
dpo_comments text NULL -
created_by int NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_dpo
14 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
name varchar(255) NOT NULL -
email varchar(255) NOT NULL -
phone varchar(50) NULL -
qualifications text NULL - Professional qualifications
hit_cert_number varchar(100) NULL - Harare Institute of Technology certification number
appointment_date date NOT NULL -
term_end_date date NULL - End of appointment term
form_dp2_submitted tinyint(1) NULL 0 Form DP2 submitted to POTRAZ
form_dp2_date date NULL - Date Form DP2 was submitted
form_dp2_ref varchar(100) NULL - POTRAZ reference for Form DP2
FK is_active tinyint(1) NULL 1
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
cdpa_processing_activity
20 columns 0 rows
Column Type Nullable Default Extra Comment
PK id bigint unsigned NOT NULL - auto_increment
name varchar(255) NOT NULL - Name of processing activity
FK category varchar(100) NOT NULL - Category of data subjects (employees, customers, etc.)
data_types text NOT NULL - Types of personal data processed (JSON array)
purpose text NOT NULL - Purpose of processing
legal_basis varchar(94) NOT NULL - consent, contract, legal_obligation, vital_interest, public_interest, legitimate_interest
storage_location varchar(37) NULL zimbabwe zimbabwe, international, both
international_country varchar(100) NULL - Country if stored internationally
retention_period varchar(100) NULL - How long data is retained
safeguards text NULL - Security safeguards description
cross_border tinyint(1) NULL 0 Involves cross-border transfer
cross_border_safeguards text NULL - Safeguards for cross-border transfer
automated_decision tinyint(1) NULL 0 Involves automated decision-making
children_data tinyint(1) NULL 0 Processes children data
biometric_data tinyint(1) NULL 0 Processes biometric data
health_data tinyint(1) NULL 0 Processes health data
FK is_active tinyint(1) NULL 1
created_by int NULL -
created_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED
updated_at datetime NULL CURRENT_TIMESTAMP DEFAULT_GENERATED on update CURRENT_TIMESTAMP
Notes

Log in to add notes.

Legend
PK Primary Key FK Foreign Key / Index UQ Unique Constraint
Table structures are read live from the database. Row counts reflect current data.
